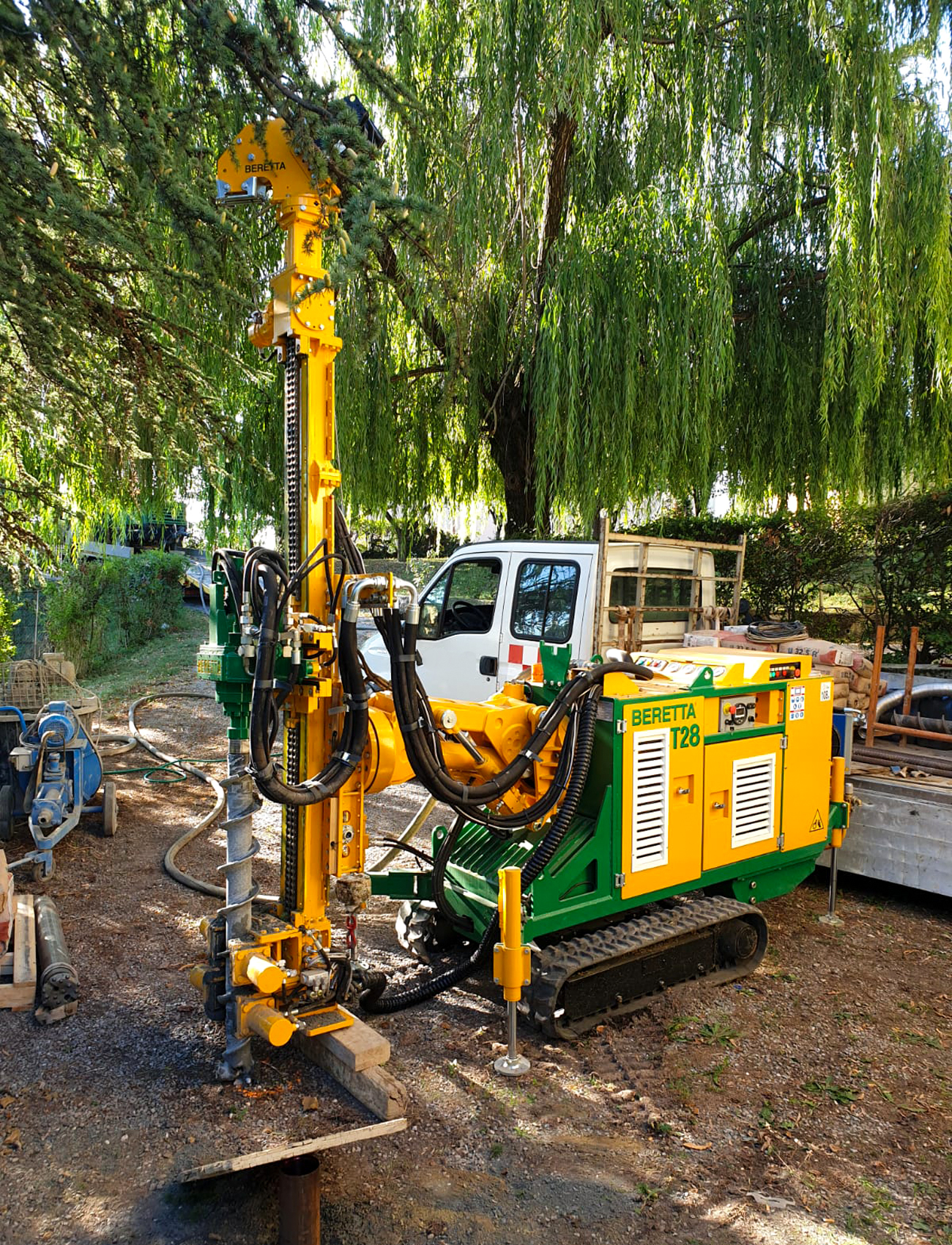

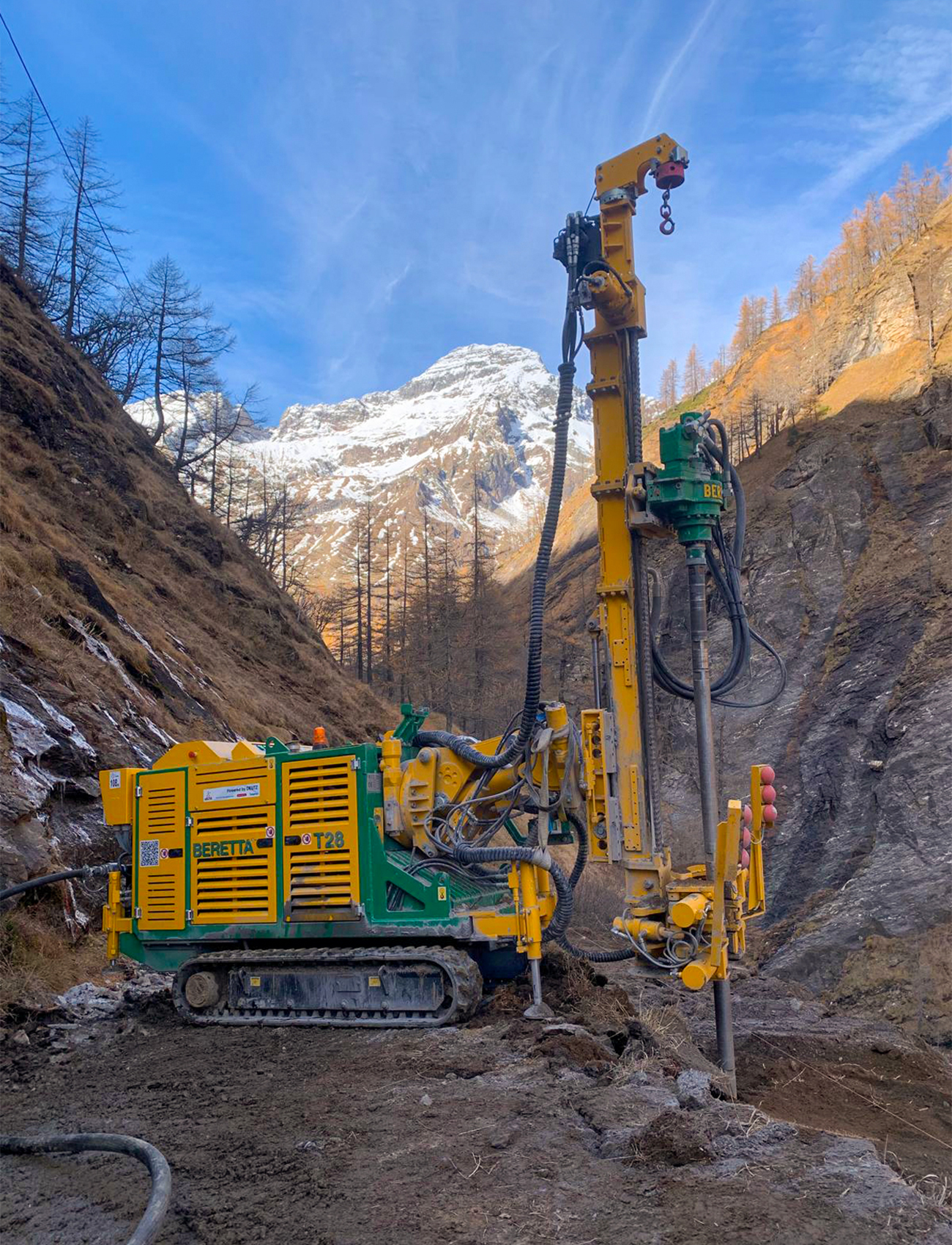

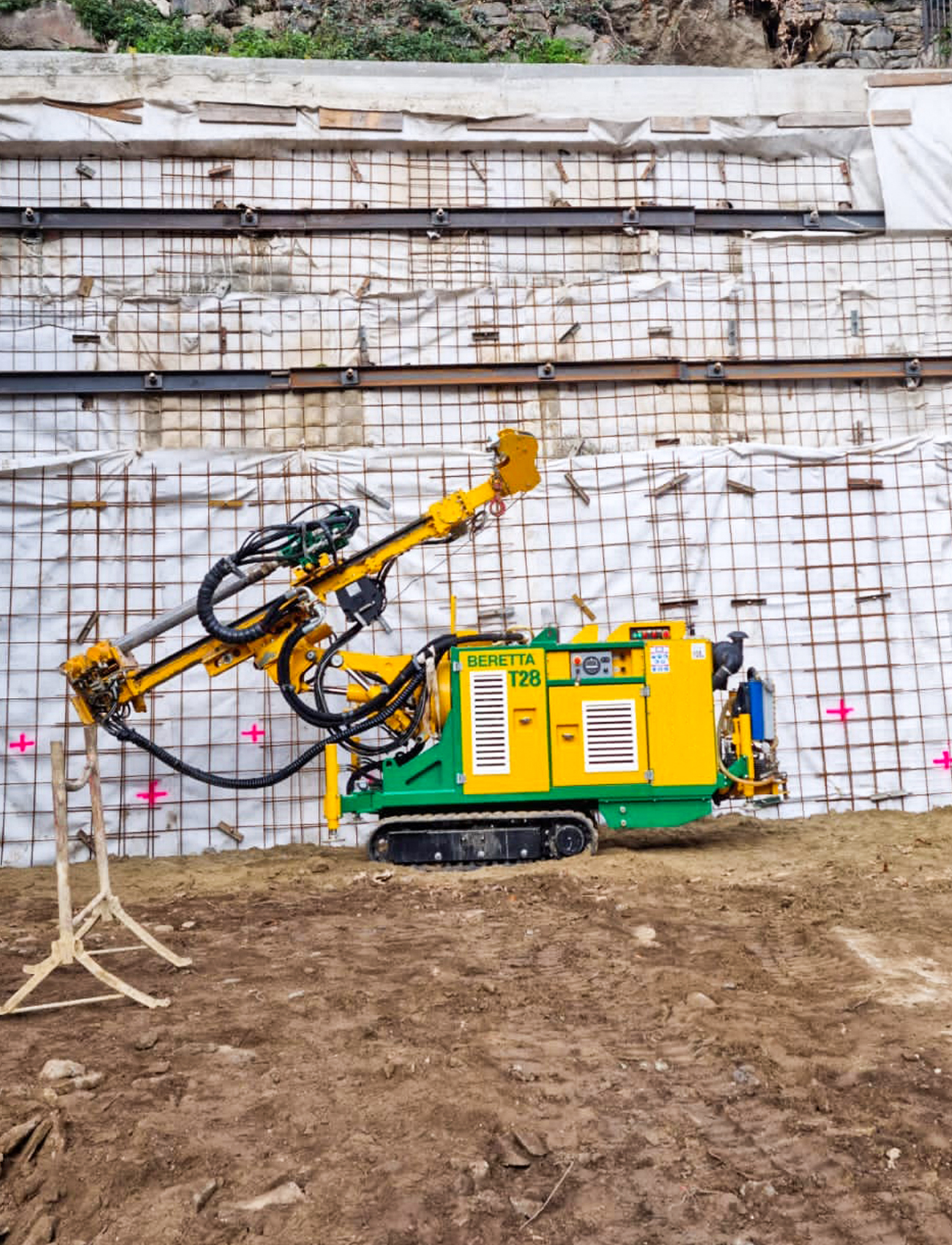

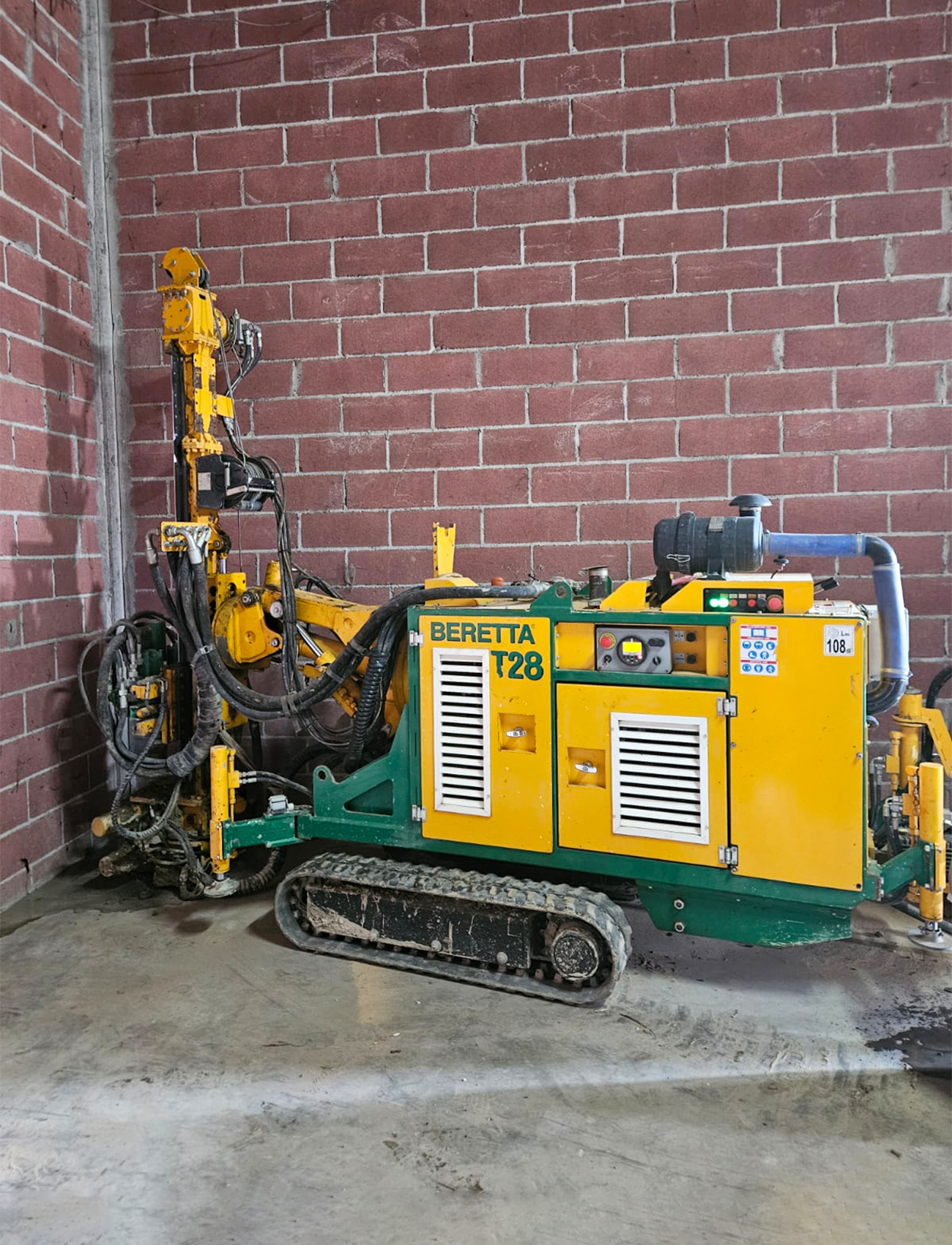

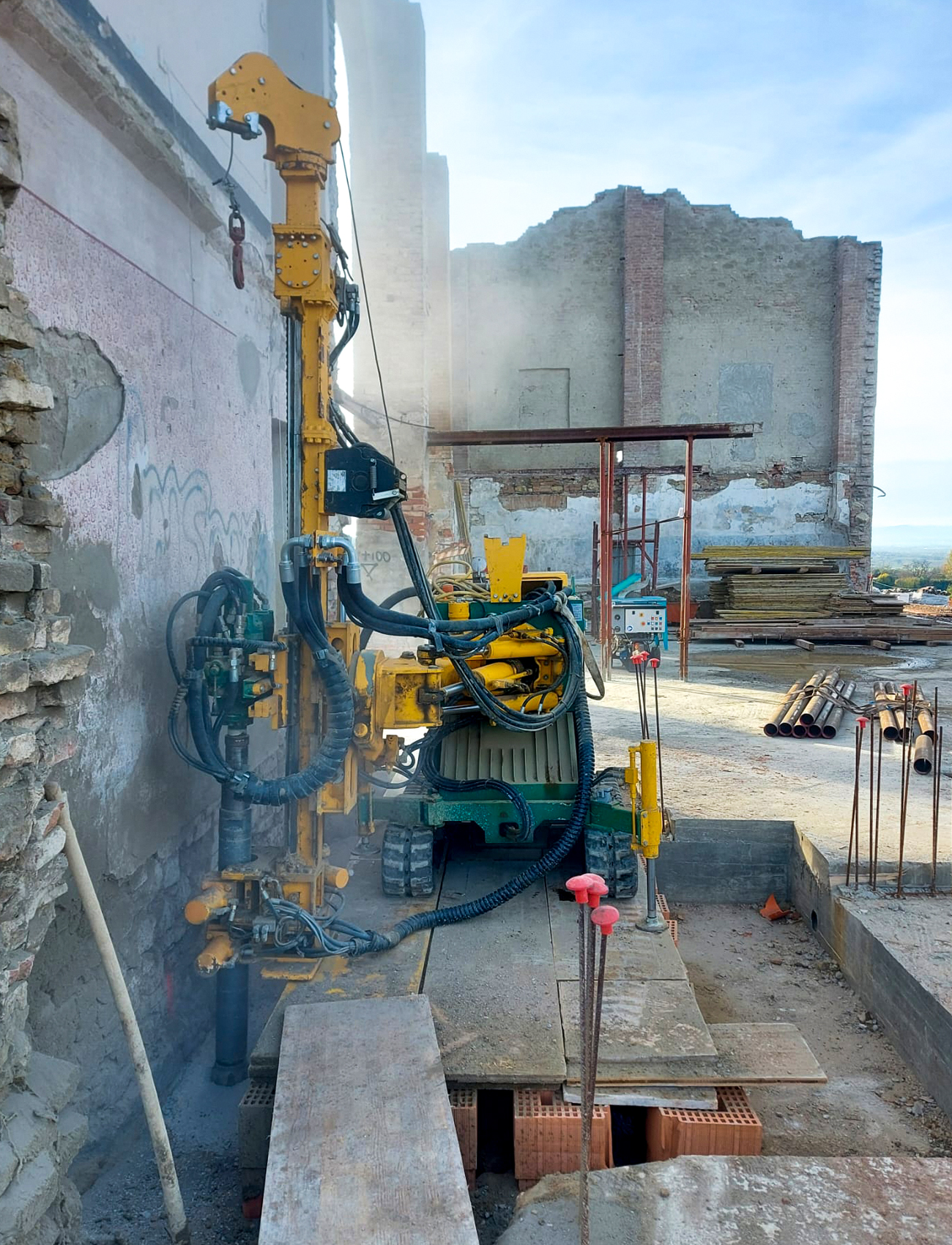

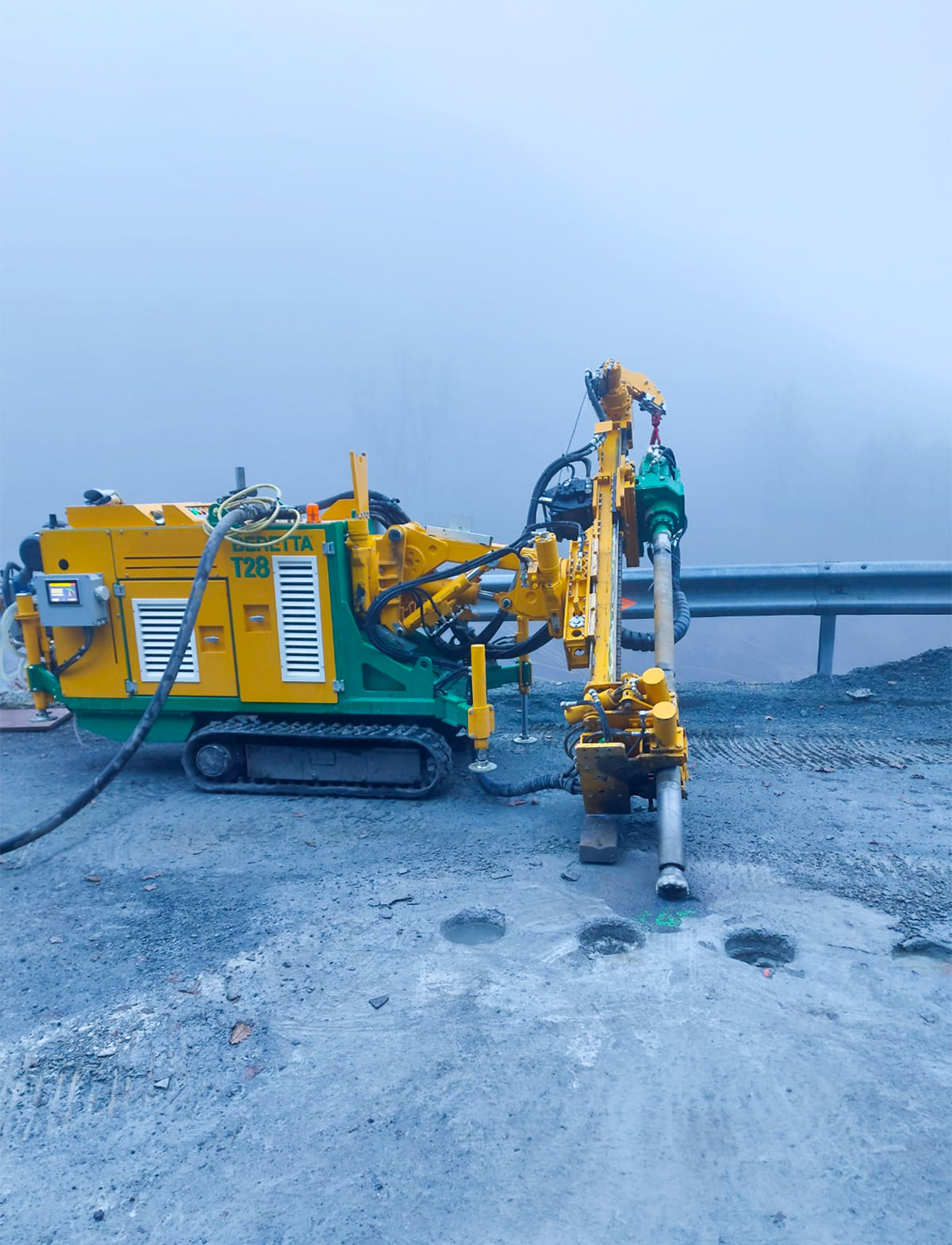

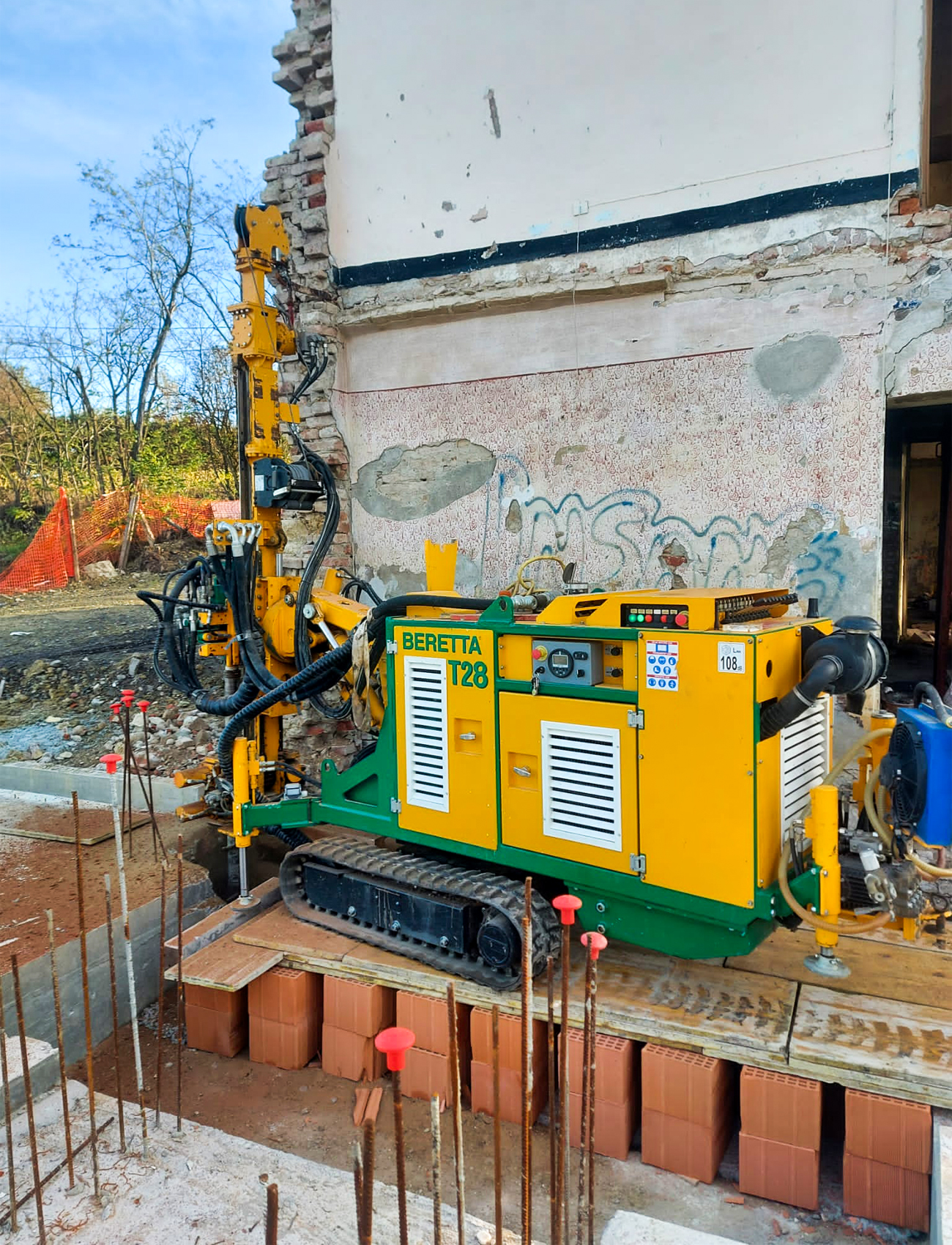

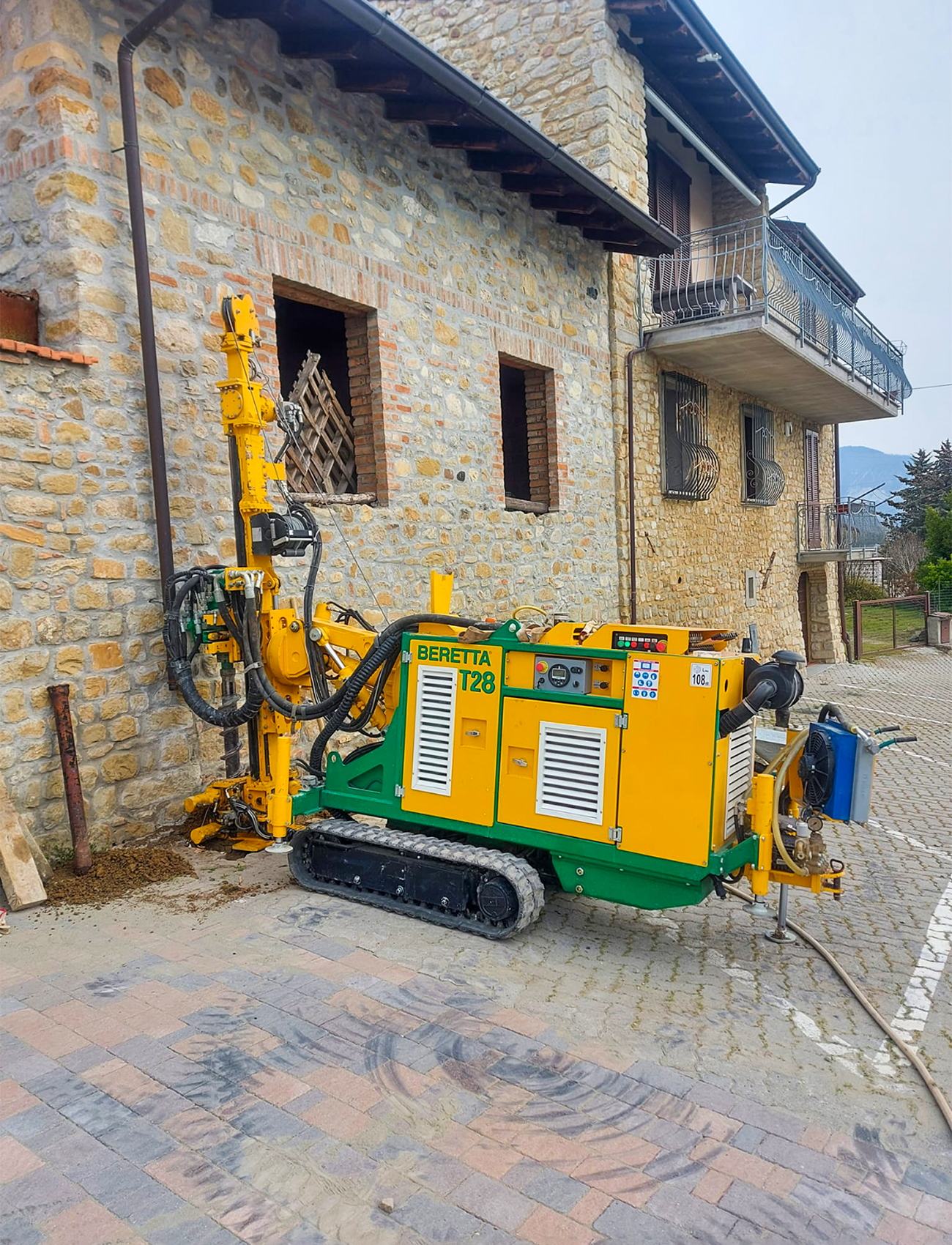

GALLERY
| DATA SHEET | EU | US |
|---|---|---|
| ENGINE | 44 KW | 60 HP |
| MAST WORKING STROKE | 1200-1700 mm | 3,93-5,57 ft |
| MAST PULL-PUSH | 25-30 Kn | 5600-6750 lbf |
| WEIGHT | 3000-3500 Kg | 6600-7700 lb |
| WIDTH | 780-1160 mm | 2,55-3,80 ft |
| TORQUE ROTARY | 400-830 daNm | 3000-6100 lb ft |
| RPM ROTARY | 200-900 | 200-900 |
| MAX CLAMP DIAMETER | 168 mm | 6,6 in |
